Z0602P Minuette Condenser Profile 17-35 Exploded image

Z0602P Minuette Condenser Profile 17-35 Spares

Click on order code for picture

Number	Order Code	Description
1	LS0806	SELF TAPPING SCREW (LID SCREW)
2	U1805	PTFE WASHER & U1872 KNOB
3	K2904	MIN PROFILE FRONT PLATE

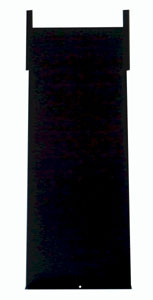

4	K2867	MIN PROFILE LENS DOOR
5	V1874	MIN STANDARD FRONT LENS (NO FRAME )
6	V1872B	MIN STANDARD REAR LENS (NO FRAME)
7	ZS029	MIN HOOP KIT COMPLETE WITH FIXINGS & HANDLE
8	U1705	MIN GRAB HANDLE
9	K2881	MIN PROFILE TOP BAFFLE
10	K2880	MIN PROFILE BACK PLATE
11	T0311	EARTH LEAD
12	T1925	GLAND SET
13 TO 17	ZS020A	MIN CONDENSER LAMPTRAY KIT
13	H2860	MIN CONDENSER LENS TRAY
14	T1528	TERMINAL BLOCK
15	K2888	MIN CONDENSER BOTTOM BAFFLE
16	U1872	KNOB
17	U1108	MALE PANNEX SLOTTED

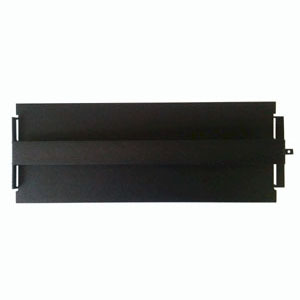

18	K2875	MIN PROF BOTTOM PLATE
