Z0642 CCT Minuette Fresnel

Online Price £150.00 Inc VAT
This item is discounted for members
The smallest, lightest and most versatile luminaire in the Minuette range. It is equally at home on the stage of the largest theatres, a school drama stage, or lighting an exhibition. Its soft-edged controllable beam is very even and well defined. The fresnel lens has been specially designed for the unit and is very efficient. The large beam angle range from 18 - 57 degrees, and the optional accessory of a rotatable four-leaf barn door, gives complete control of the beam shape. The beam angle is adjusted by a heat resistant knob under the unit. Sliding this toward the lens increases the beam angle - away from the lens reduces it. The heat resistant rear handle and the "T" shaped tilt locking handle give easy, cool control when adjusting the unit's position. (For professional use : This item does not include a plug)
Click to expand

Detailed Description

Photometric data

  CCT Minuette Z0642 Fresnel (650W 14,500 lm)
Minimum angle   Maximum angle
Peak Candela (cd) 41,000 Peak Candela (cd) 8,750
Beam Angle² (°) 8.5 Beam Angle² (°) 47.0
Cut off angle³ (°) 18.0 Cut off angle³ (°) 57.0
Distance (m) 3 6 9 12 Distance (m) 3 6 9 12
Cut off dia (m) 0.45 0.90 1.35 1.80 Cut off dia (m) 2.61 5.22 7.83 10.44
Peak Illumination (lux) 4,555 1,139 506 285 Peak Illumination (lux) 972 243 108 61

All photometric data given is indicative of typical performance only. Specifications and materials may be changed without prior notice.
¹ Field Angle: where intensity drops to 10% of peak lux
² Beam Angle: where intensity drops to 50% of peak lux
³ Cut off Angle: where intensity drops to zero of peak lux

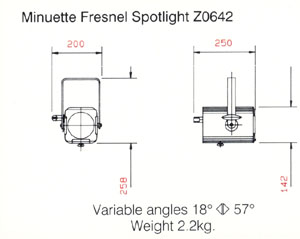

Reference Information

  CCT Minuette Z0642 Fresnel
Height¹ (mm) 258
Height² (mm) 142
Width (mm) 200
Depth (mm) 250
Weight (kg) 2.2

¹ Height of luminaire when in horizontal hanging position
² Height of luminaire excluding yoke

Accessories

Z0043 4-leaf barndoor
Y0057 10mm spigot
Z0431 Extra colour frame
Y0083 Hookclamp
Y0082 Safety bond
